In shrink sleeve packaging, consistency matters. From label appearance and barcode readability to throughput and operational flexibility, the shrink tunnel plays a critical role in overall line performance. While hot air tunnels remain common, many manufacturers are turning to steam shrink tunnels for their versatility, control, and superior quality.

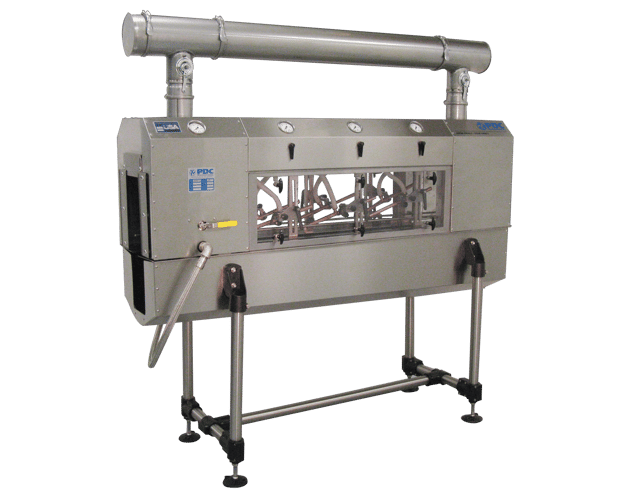

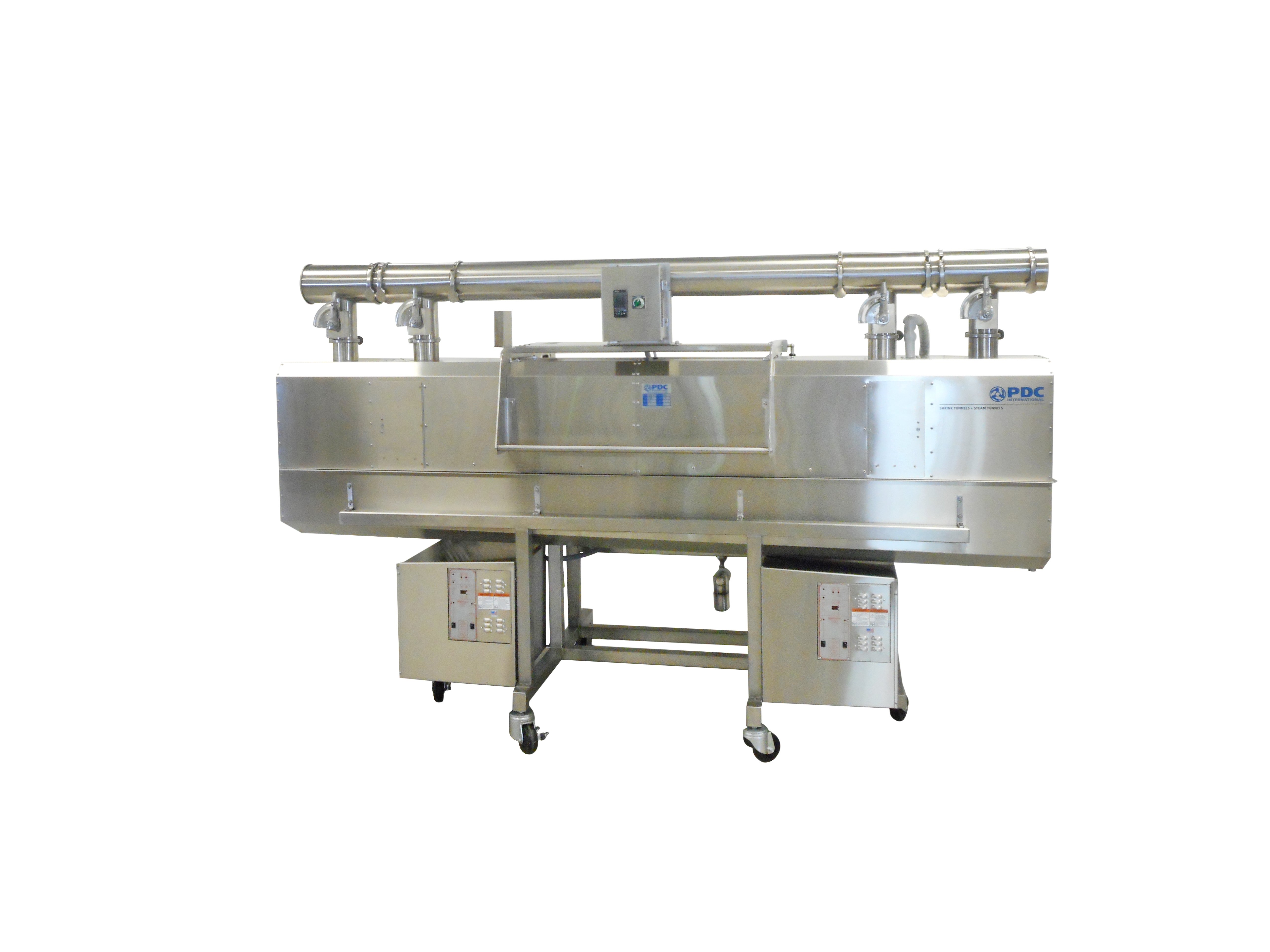

PDC steam shrink tunnels are engineered to deliver uniform, high quality results across a wide range of containers, films, and label designs, making them an ideal solution for shrink sleeving operations.  Below, we explore the key benefits of using PDC steam shrink tunnels and why steam remains the most versatile and effective shrink method available.

Steam Is the Most Versatile Shrink Method Available

Steam is widely regarded as the most flexible method for shrinking sleeves, especially in operations that handle multiple SKUs, label colors, container shapes, or label materials.

Unlike hot air, which relies on directional airflow and higher temperatures, steam transfers heat efficiently and evenly around the container. This allows the sleeve to conform tightly to complex geometries without distortion.

The result: consistent shrink performance across a broad range of applications with fewer adjustments and less risk of defects.

Compatible with All Shrink Sleeve Film Substrates

One of the most significant advantages of steam shrink tunnels is film compatibility.

Steam works effectively with virtually all shrink sleeve substrates, including:

• PETG
• PVC
• OPS
• cPET
• PLA and other sustainable films

Because steam delivers uniform energy transfer, it eliminates many of the challenges associated with film sensitivity, thickness variation, or shrink-force differences.

This makes steam tunnels ideal for packaging lines that:

• Run multiple film types
• Transition between film suppliers
• Support sustainability initiatives

Superior Label Appearance with Minimal Distortion

Hot air tunnels can distort film, pulling and stretching graphics. Steam shrink tunnels, by contrast, apply heat evenly and gently, allowing the label to shrink smoothly and predictably.

Key appearance benefits include:

• Reduced wrinkles and puckering
• More uniform shrink from top to bottom
• High quality results on contoured containers

This uniform shrink quality helps brands maintain a premium shelf appearance without excessive trial-and-error on change-over adjustments.

Text and UPC Codes Stay Straight and Legible

Barcode scanability is non-negotiable in packaging operations. Steam’s uniform shrink performance helps prevent the twisting, skewing, or warping that can occur in hot air tunnels.

With steam shrink tunnels:

• Text remains straight
• UPC codes stay aligned
• Scan rates improve downstream

This consistency reduces costly rework or chargebacks from retailers.

Forgiving with Ink Coverage and Metallic Designs

Shrink sleeves with heavy ink coverage, dark colors, or metallic finishes are especially sensitive to uneven heat. Steam tunnels are far more forgiving in these scenarios.

Steam allows inks, particularly metallics and specialty finishes, to shrink evenly without:

• Color distortion
• Marbeling
• Visual inconsistency

For brand-driven packaging where aesthetics matter as much as performance, steam offers a clear advantage.

Multiple Package Formats with Fewer Changeovers

When running multiple SKUs or container shapes flexibility is critical. Steam shrink tunnels often allow multiple container shapes and sizes to run with a single tunnel setting, something that is difficult to achieve with hot air systems.

This flexibility enables:

• Faster changeovers
• Reduced downtime
• Simplified operator training

For co-packers and manufacturers managing diverse product lines, this alone can significantly improve operational efficiency.

Lower Operating Temperatures Than Hot Air Tunnels

Steam tunnels operate at significantly lower temperatures than hot air tunnels, reducing the risk of:

• Container deformation
• Label scorching
• Heat-related line issues
• Product spoilage

Lower operating temperatures also contribute to:

• Improved workplace safety
• Reduced thermal stress on packaging materials
• Greater control over the shrink process

Greater Adjustability and Process Control

PDC steam tunnels offer more adjustment points than hot air tunnels, giving operators precise control over the shrink process.

Adjustable elements include:

• Steam pressure
• Temperature
• Valve configuration
• Individual pipe angles

This multi-dimensional adjustability allows fine-tuning for:

• Challenging container shapes and sizes
• Specialty films
• High-speed applications

The result is a highly controllable process that can be optimized for both quality and throughput.

Ideal for Complex and Contoured Containers

Steam excels where hot air struggles, especially with:

• Asymmetrical bottles
• Deep contours
• Narrow necks, and recessed features

This capability makes steam shrink tunnels the preferred choice for brands and manufacturers pushing the boundaries of package design.

Why Choose PDC Steam Shrink Tunnels?

PDC steam shrink tunnels are designed with decades of packaging expertise and ruggedly built for reliability, flexibility, and performance. Whether supporting high-speed beverage lines or specialty packaging applications, PDC systems deliver consistent results across industries.

By choosing steam (and choosing PDC!), manufacturers gain:

• Greater process forgiveness
• Superior shrink quality
• Reduced setup complexity
• Long-term operational efficiency

PDC: Total Sleeving Solutions You Can Trust

Steam shrink tunnels offer unmatched flexibility, control, and shrink consistency across today’s diverse packaging applications. With lower operating temperatures, superior label appearance, and the ability to handle complex container shapes and film types, PDC steam shrink tunnels provide a reliable, future-ready solution for manufacturers focused on efficiency, quality, and long-term performance.

Ready to see what PDC can do for you? Contact our team to learn more.
